Block Machines Movable by Global Impex

Global 1060G Block Making Machine

Contact Us

Phone Number

08048070294

Please keep 0 before dialling the number.

Email Address info@globalimpex.in

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address Global Impex, Puthu Thottam, Sanganoor, Coimbatore, Tamil Nadu, India

Coimbatore, India, 641012

Description

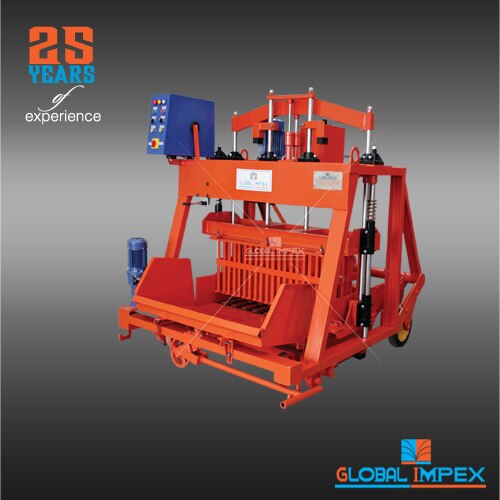

Global 1060G HydraulicSpecification: No. Of Operations 50 - 60 per hour Vibro Motor 2hp, 440v, 3ph Hydraulic Pump Motor 5hp, 440v, 3ph Travel Motor 0.5hp, 440v, 3ph Machine weight 1500kg (Approx.) Production Details: (10 hours) 400 x 200 x 200 mm 5 blocks per cycle perday 3000 blocks 400 x 200 x 150 mm 6 blocks per cycle per day 3600 blocks 400 x 200 x 100 mm 10 blocks per cycle perday 6000 blocks 200 x 100 x 90 mm 20 blocks per cycle perday 120000 blocks About The Machine: This is an egg laying Hydraulic Concrete Block Making Machine on wheels. It will lay blocks on a concrete floor and move to the next position. This process eliminates the need for wood or steel pallets. The mould and ram are moved by hydraulic cylinders, which creates a much stronger block and the block maker can use less cement. Any type of blocks can be produced with consistent quality by affixing the desired mould. Several standard moulds are readily available. Custom moulds can be produced. This machine applies pressure of 2000 PSI. This machine can be used to produce hollow block, solid blocks, bricks galore and interlocking pavers.

Other Products

view all

6814772a5d263414004dd4a4 Card 2

product image
Block Machines Movable

Global 430G Mini Hydraulic Block Making Machine

430 G HYDRAULIC OPERATED CONCRETE BLOCK MAKING MACHINE POWER REQUIRED : 3.5 HP / SINGLE (or) 3PHASE. NO. OF OPERATIONS : 50 - 60 PER HOUR VIBRATOR MOTOR : 1HP, 440V, 3PH HYDRAULIC PUMP MOTOR : 2HP, 440V, 3PH TRAVEL MOTOR : 0.5HP, 440V, 3PH MACHINE WEIGHT : 750KG (APPROX.) CUBIC SPACE OCCUPIED BY THE MACHINE 1700 x 900 x 1700 MM PRODUCTION PER STROKE 400 X 200 X 200 MM 2 PER CYCLE 400 X 200 X 150 MM 3 PER CYCLE 400 X 200 X 100 MM 4 PER CYCLE

6814772a5d263414004dd4a4 Card 2

product image
Block Machines Movable

Global 860G Concrete Block Making Machine

860G HYDRAULIC OPERATED CONCRETE BLOCK MAKING MACHINE POWER REQUIRED : 5 HP NO. OF OPERATIONS : 50 - 60 PER HOUR VIBRATOR MOTOR: 1.5HP, 440V, 3PH HYDRAULIC PUMP MOTOR : 3HP, 440V, 3PH TRAVEL MOTOR : 0.5HP, 440V, 3PH MACHINE WEIGHT : 1500KG (APPROX.) CUBIC SPACE OCCUPIED BY THE MACHINE : 1700 x 1275 x 1700 MM PRODUCTION PER STROKE 400 X 200 X 200 MM 4 PER CYCLE 400 X 200 X 150 MM 5 PER CYCLE 400 X 200 X 100 MM 8 PER CYCLE PAVERS UPTO 14 PER CYCLE

6814772a5d263414004dd4a4 Card 2

product image
Block Machines Movable

Global 1060G Hydraulic Operated Block Making Machine

1060G HYDRAULIC OPERATED CONCRETE BLOCK MAKING MACHINE NO. OF OPERATIONS : 50 - 60 PER HOUR VIBRATOR MOTOR : 2HP, 440V, 3PH HYDRAULIC PUMP MOTOR : 5HP, 440V, 3PH TRAVEL MOTOR : 0.5HP, 440V, 3PH MACHINE WEIGHT : 1500KG (APPROX.) CUBIC SPACE OCCUPIED BY THE MACHINE 1100 x 1475 x 1750 MM PRODUCTION PER STROKE 400 X 200 X 200 MM 5 PER CYCLE 400 X 200 X 150 MM 6 PER CYCLE 400 X 200 X 100 MM 10 PER CYCLE PAVERS UPTO 16 PER CYCLE
