430 G HYDRAULIC OPERATED CONCRETE BLOCK MAKING MACHINE POWER REQUIRED : 3.5 HP / SINGLE (or) 3PHASE. NO. OF OPERATIONS : 50 - 60 PER HOUR VIBRATOR MOTOR : 1HP, 440V, 3PH HYDRAULIC PUMP MOTOR : 2HP, 440V, 3PH TRAVEL MOTOR : 0.5HP, 440V, 3PH MACHINE WEIGHT : 750KG (APPROX.) CUBIC SPACE OCCUPIED BY THE MACHINE 1700 x 900 x 1700 MM PRODUCTION PER STROKE 400 X 200 X 200 MM 2 PER CYCLE 400 X 200 X 150 MM 3 PER CYCLE 400 X 200 X 100 MM 4 PER CYCLE

860G HYDRAULIC OPERATED CONCRETE BLOCK MAKING MACHINE POWER REQUIRED : 5 HP NO. OF OPERATIONS : 50 - 60 PER HOUR VIBRATOR MOTOR: 1.5HP, 440V, 3PH HYDRAULIC PUMP MOTOR : 3HP, 440V, 3PH TRAVEL MOTOR : 0.5HP, 440V, 3PH MACHINE WEIGHT : 1500KG (APPROX.) CUBIC SPACE OCCUPIED BY THE MACHINE : 1700 x 1275 x 1700 MM PRODUCTION PER STROKE 400 X 200 X 200 MM 4 PER CYCLE 400 X 200 X 150 MM 5 PER CYCLE 400 X 200 X 100 MM 8 PER CYCLE PAVERS UPTO 14 PER CYCLE

1060G HYDRAULIC OPERATED CONCRETE BLOCK MAKING MACHINE NO. OF OPERATIONS : 50 - 60 PER HOUR VIBRATOR MOTOR : 2HP, 440V, 3PH HYDRAULIC PUMP MOTOR : 5HP, 440V, 3PH TRAVEL MOTOR : 0.5HP, 440V, 3PH MACHINE WEIGHT : 1500KG (APPROX.) CUBIC SPACE OCCUPIED BY THE MACHINE 1100 x 1475 x 1750 MM PRODUCTION PER STROKE 400 X 200 X 200 MM 5 PER CYCLE 400 X 200 X 150 MM 6 PER CYCLE 400 X 200 X 100 MM 10 PER CYCLE PAVERS UPTO 16 PER CYCLE

Global 7/5CFT MixerSpecification: Capacity 7/5 CFT Drum Speed 18/20 RPM Type Wheel or Stand Operations Hydraulic/manual

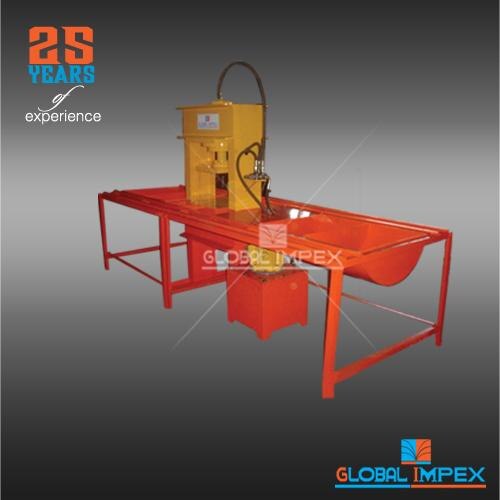

Global Mosaic And PaverSpecification: Type Hydraulic Motor 5HP or 3 HP Pressing Ton Capacity 1 to 25 Tons Oil Tank Capacity 30 Liters Hydraulic Oil System 68 Grade Operations Per Day 1000nos Weight 1 Ton (App) About The Machine: Hydraulic Mosaic and paving block making machine with 3HD motor

Global Vibrator SingleSpecification: No. Of operations 50 - 55 per hour Vibrator motor 1. 5 hp, 1 ph or 1 ph, 3 ph Machine weight 500 kg (approx. ) Machine size 6 cbm (approx. ) Production Details: 400 x 200 x 100 mm 1 PER STROKE 400 x 200 x 150 mm 1 PER STROKE 400 x 200 x 200 mm 2 PER STROKE About The Machine: This is a manual block making machine. Good concrete blocks with sharp edges can be produced with the use of power/vibrator. This machine can be fitted with a diesel vibrator, which is good for the use in the rural areas where there are frequent power outages. It comes equipped with a 1.5 HP Single Phase, or 1 HP 3Phase electric vibrator, 1440 RPM and weigh about 500 Kgs.

Global 860SProduction Details: (10 hours)400 x 200 x 200 mm2 blocks per cycleperday 1200 blocks400 x 200 x 150 mm3 blocks per cycleper day 1500 blocks400 x 200 x 100 mm4 blocks per cycleperday 2400 blocks200 x 100 x 90 mm16 blocks per cycleperday 4800 blocks About The Machine: 860S Hydraulic Operated Concrete Block Making Machine is very simple operation stationary block making machine its run by single phase / 3 phase power. There are many machines on the market that are much larger and triple the price, with a daily production that is similar or less than this machine. Pavers blocks also produce in the same machines.

Global 1000 SHD With ConveyorSpecification: No. Of operations 50 - 60 per hour Vibro motor 1.5HP, 440/220V, 3PH Hydraulic pump motor 7.5HP, 440/220V, 3PH Conveyor motor 1 hp, 440/220v, 3ph Machine weight 1500kg (approx. ) Cubic space occupied by the machine(MTRS) 10/CBM Production Details: (10 hours) 400 x 200 x 200 mm 3 blocks per cycle perday 1800 blocks 400 x 200 x 150 mm 4 blocks per cycle perday 2400 blocks 400 x 200 x 100 mm 6 blocks per cycle perday 3600 blocks 200 x 100 x 90 mm 12 blocks per cycle perday 5000 blocks About The Machine: The 1000shd block making machine is a hydraulic machine which has the same production capabilities as the other machine, but produces a stronger block, due to the greater pound pressure applied by the hydraulic system. The block manufacturer can also realize substantial savings by using less cement. . This machine is designed for the manufacturer with limited space, limited budget and the desire to achieve good quality, high volume of blocks, with the minimum cash outlay. There are many machines on the market that are much larger and triple the price, with a daily production that is similar or less than this machine. paver blocks also produce the same machines.

430 G MANUAL MOVABLE CONCRETE BLOCK MAKING MACHINE NO. OF OPERATIONS : 50 - 55 PER HOUR POWER VIBRATOR : 1.5HP, (1PH, 3PH) VIBRATIONS : 6000Hz constant AMPLITUDE : ADJUSTABLE MOULDING AREA : 430 x 600MM MACHINE WEIGHT : 700KG (APPROX.) DIMENSIONS : 1000 x 1250 x 1500mm

430 G HYDRAULIC OPERATED CONCRETE BLOCK MAKING MACHINE POWER REQUIRED : 3.5 HP / SINGLE (or) 3PHASE. NO. OF OPERATIONS : 50 - 60 PER HOUR VIBRATOR MOTOR : 1HP, 440V, 3PH HYDRAULIC PUMP MOTOR : 2HP, 440V, 3PH TRAVEL MOTOR : 0.5HP, 440V, 3PH MACHINE WEIGHT : 750KG (APPROX.) CUBIC SPACE OCCUPIED BY THE MACHINE 1700 x 900 x 1700 MM PRODUCTION PER STROKE 400 X 200 X 200 MM 2 PER CYCLE 400 X 200 X 150 MM 3 PER CYCLE 400 X 200 X 100 MM 4 PER CYCLE

Global 1060G HydraulicSpecification: No. Of Operations 50 - 60 per hour Vibro Motor 2hp, 440v, 3ph Hydraulic Pump Motor 5hp, 440v, 3ph Travel Motor 0.5hp, 440v, 3ph Machine weight 1500kg (Approx.) Production Details: (10 hours) 400 x 200 x 200 mm 5 blocks per cycle perday 3000 blocks 400 x 200 x 150 mm 6 blocks per cycle per day 3600 blocks 400 x 200 x 100 mm 10 blocks per cycle perday 6000 blocks 200 x 100 x 90 mm 20 blocks per cycle perday 120000 blocks About The Machine: This is an egg laying Hydraulic Concrete Block Making Machine on wheels. It will lay blocks on a concrete floor and move to the next position. This process eliminates the need for wood or steel pallets. The mould and ram are moved by hydraulic cylinders, which creates a much stronger block and the block maker can use less cement. Any type of blocks can be produced with consistent quality by affixing the desired mould. Several standard moulds are readily available. Custom moulds can be produced. This machine applies pressure of 2000 PSI. This machine can be used to produce hollow block, solid blocks, bricks galore and interlocking pavers.

Global 860GSpecification:Power Required5 HpNo. Of operations50 - 60 per hourVibro motor1.5Hp, 440V, 3PhHydraulic pump motor3Hp, 440V, 3PhTravel motor0.5Hp, 440V, 3PhMachine weight1500Kg (Approx.)Cubic space occupied by the machine1700 X 1275 X 1700 Mm Production Details: (10 hours)400 x 200 x 200 mm4 blocks per cycleperday 2400 blocks400 x 200 x 150 mm5 blocks per cycleper day 3000 blocks400 x 200 x 100 mm8 blocks per cycleperday 4800 blocks200 x 100 x 90 mm16 blocks per cycleperday 10000 blocks About The Machine: This is an Hydraulic Concrete Block Making Machine on wheels. It will lay blocks on a concrete floor and move to the next position. This process eliminates the need for wood or steel pallets. The mould and ram are moved by hydraulic cylinders, which creates a much stronger block and the block maker can use less cement. Any type of blocks can be produced with consistent quality by affixing the desired mould. Several standard moulds are readily available. Custom moulds can be produced. This machine applies pressure of 2000 PSI. This machine can be used to produce hollow block, solid blocks, bricks galore and interlocking pavers.
