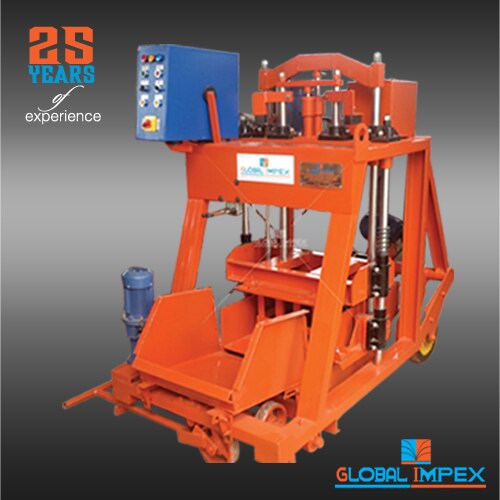

Global 430G Mini Hydraulic Block Making Machine
In stock
Description
430 G HYDRAULIC OPERATED CONCRETE BLOCK MAKING MACHINE
POWER REQUIRED : 3.5 HP / SINGLE (or) 3PHASE.
NO. OF OPERATIONS : 50 - 60 PER HOUR
VIBRATOR MOTOR : 1HP, 440V, 3PH
HYDRAULIC PUMP MOTOR : 2HP, 440V, 3PH
TRAVEL MOTOR : 0.5HP, 440V, 3PH
MACHINE WEIGHT : 750KG (APPROX.)
CUBIC SPACE OCCUPIED BY THE MACHINE
1700 x 900 x 1700 MM
PRODUCTION PER STROKE
400 X 200 X 200 MM 2 PER CYCLE
400 X 200 X 150 MM 3 PER CYCLE
400 X 200 X 100 MM 4 PER CYCLE
