Block Machines Movable by Global Impex

Global 860G Block Making Machine

Contact Us

Phone Number

08048070294

Please keep 0 before dialling the number.

Email Address info@globalimpex.in

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Address Global Impex, Puthu Thottam, Sanganoor, Coimbatore, Tamil Nadu, India

Coimbatore, India, 641012

Description

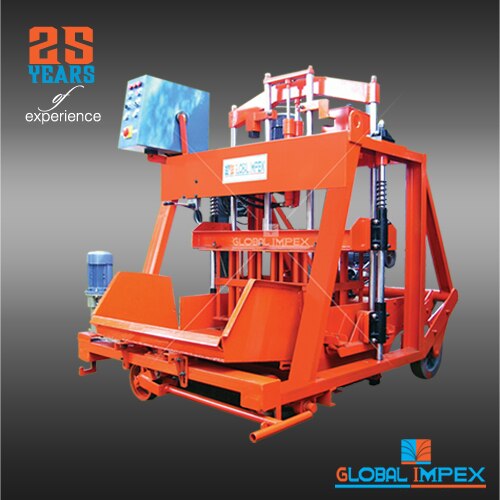

Global 860GSpecification:Power Required5 HpNo. Of operations50 - 60 per hourVibro motor1.5Hp, 440V, 3PhHydraulic pump motor3Hp, 440V, 3PhTravel motor0.5Hp, 440V, 3PhMachine weight1500Kg (Approx.)Cubic space occupied by the machine1700 X 1275 X 1700 Mm Production Details: (10 hours)400 x 200 x 200 mm4 blocks per cycleperday 2400 blocks400 x 200 x 150 mm5 blocks per cycleper day 3000 blocks400 x 200 x 100 mm8 blocks per cycleperday 4800 blocks200 x 100 x 90 mm16 blocks per cycleperday 10000 blocks About The Machine: This is an Hydraulic Concrete Block Making Machine on wheels. It will lay blocks on a concrete floor and move to the next position. This process eliminates the need for wood or steel pallets. The mould and ram are moved by hydraulic cylinders, which creates a much stronger block and the block maker can use less cement. Any type of blocks can be produced with consistent quality by affixing the desired mould. Several standard moulds are readily available. Custom moulds can be produced. This machine applies pressure of 2000 PSI. This machine can be used to produce hollow block, solid blocks, bricks galore and interlocking pavers.

Other Products

view all

6814772a5d263414004dd4a4 Card 2

product image
Block Machines Movable

Global 430G Mini Hydraulic Block Making Machine

430 G HYDRAULIC OPERATED CONCRETE BLOCK MAKING MACHINE POWER REQUIRED : 3.5 HP / SINGLE (or) 3PHASE. NO. OF OPERATIONS : 50 - 60 PER HOUR VIBRATOR MOTOR : 1HP, 440V, 3PH HYDRAULIC PUMP MOTOR : 2HP, 440V, 3PH TRAVEL MOTOR : 0.5HP, 440V, 3PH MACHINE WEIGHT : 750KG (APPROX.) CUBIC SPACE OCCUPIED BY THE MACHINE 1700 x 900 x 1700 MM PRODUCTION PER STROKE 400 X 200 X 200 MM 2 PER CYCLE 400 X 200 X 150 MM 3 PER CYCLE 400 X 200 X 100 MM 4 PER CYCLE

6814772a5d263414004dd4a4 Card 2

product image
Block Machines Movable

Global 860G Concrete Block Making Machine

860G HYDRAULIC OPERATED CONCRETE BLOCK MAKING MACHINE POWER REQUIRED : 5 HP NO. OF OPERATIONS : 50 - 60 PER HOUR VIBRATOR MOTOR: 1.5HP, 440V, 3PH HYDRAULIC PUMP MOTOR : 3HP, 440V, 3PH TRAVEL MOTOR : 0.5HP, 440V, 3PH MACHINE WEIGHT : 1500KG (APPROX.) CUBIC SPACE OCCUPIED BY THE MACHINE : 1700 x 1275 x 1700 MM PRODUCTION PER STROKE 400 X 200 X 200 MM 4 PER CYCLE 400 X 200 X 150 MM 5 PER CYCLE 400 X 200 X 100 MM 8 PER CYCLE PAVERS UPTO 14 PER CYCLE

6814772a5d263414004dd4a4 Card 2

product image
Block Machines Movable

Global 1060G Hydraulic Operated Block Making Machine

1060G HYDRAULIC OPERATED CONCRETE BLOCK MAKING MACHINE NO. OF OPERATIONS : 50 - 60 PER HOUR VIBRATOR MOTOR : 2HP, 440V, 3PH HYDRAULIC PUMP MOTOR : 5HP, 440V, 3PH TRAVEL MOTOR : 0.5HP, 440V, 3PH MACHINE WEIGHT : 1500KG (APPROX.) CUBIC SPACE OCCUPIED BY THE MACHINE 1100 x 1475 x 1750 MM PRODUCTION PER STROKE 400 X 200 X 200 MM 5 PER CYCLE 400 X 200 X 150 MM 6 PER CYCLE 400 X 200 X 100 MM 10 PER CYCLE PAVERS UPTO 16 PER CYCLE
