Global Jumbo 860-G Concrete Block Making Machine

Global Jumbo 860-G Concrete Block Making Machine

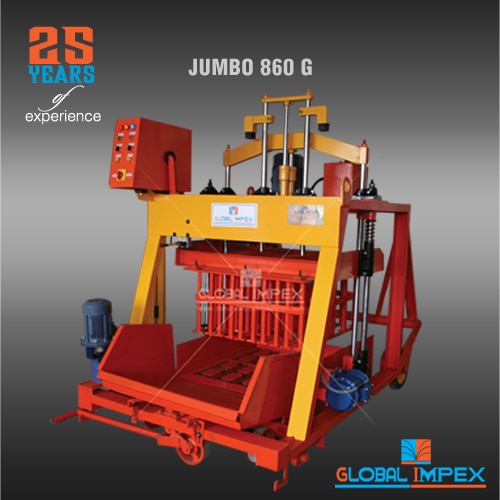

The Global Jumbo 860-G Concrete Block Making Machine is a movable hydraulic concrete block machine designed for high-efficiency production with low maintenance. This machine operates on a concrete floor without requiring pallets, making it cost-effective and suitable for small to medium block manufacturing units.

With advanced hydraulic pressure, dual vibrators, and easy mobility, this machine ensures strong, uniform blocks with reduced cement consumption.

Machine Specifications

Specification Details

Model Global Jumbo 860-G

Number of Operations 50 – 60 cycles per hour

Vibro Motors 2 Nos – 440V, 3 Phase

Hydraulic Pump Motor 5 HP – 440V, 3 Phase

Travel Motor 1 HP – 440V, 3 Phase

Machine Weight Approx. 1750 kg

Machine Size 2100 × 1275 × 1750 mm

Hydraulic Pressure 2000 PSI

Machine Type Movable Hydraulic Block Machine

Operation Mode Wheel-mounted floor operation

Production Capacity (10 Hours)

Block Size Blocks per Cycle Daily Production

400 × 200 × 200 mm 8 Blocks 4800 Blocks

400 × 200 × 150 mm 10 Blocks 6000 Blocks

400 × 200 × 100 mm 16 Blocks 9600 Blocks

200 × 100 × 90 mm 20 Blocks 10000 Blocks

Key Features

✔ Movable Machine on Wheels – Easily moves to the next production position.

✔ No Pallets Required – Blocks are produced directly on the concrete floor.

✔ Hydraulic Pressing System – Ensures stronger and durable blocks.

✔ High Frequency Vibrators – Two vibrators provide excellent compaction.

✔ Low Cement Consumption – Efficient design reduces raw material cost.

✔ Easy Mould Change System – Produce different block types using different moulds.

✔ Low Maintenance Design – Simple mechanical structure for easy servicing.

Types of Blocks Produced

This machine can manufacture multiple construction blocks such as:

Hollow Concrete Blocks

Solid Concrete Blocks

Fly Ash Bricks

Interlocking Paver Blocks

Cement Bricks

Working Principle

1️⃣ Concrete mixture is placed inside the mould.

2️⃣ Hydraulic cylinders move the mould and ram system.

3️⃣ High-frequency vibrators compact the material.

4️⃣ Hydraulic pressure of 2000 PSI forms strong blocks.

5️⃣ Machine moves forward and repeats the production cycle.

This continuous floor production system increases efficiency and eliminates pallet costs.

Advantages of Global Jumbo 860-G

Advantage Benefit

Hydraulic Pressure Produces stronger blocks

Dual Vibrator System High compaction

Wheel Mounted Machine Easy mobility

Simple Design Low maintenance

Multi-Block Production Flexible manufacturing

No Pallets Required Reduced production cost

Most Searched Keywords (SEO)

Use these keywords for Google ranking and marketing:

Concrete Block Making Machine

Hydraulic Concrete Block Machine

Hollow Block Making Machine

Cement Brick Making Machine

Fly Ash Brick Machine

Interlocking Paver Block Machine

Movable Block Making Machine

Automatic Block Machine

Concrete Block Manufacturing Machine

Hydraulic Brick Making Machine

Construction Block Machine

Block Making Machine Price India

Concrete Block Machine Manufacturer

Hollow Block Machine India

✔ Best for: Construction companies, block manufacturers, contractors, and building material suppliers.
